Data Privacy in LLM Training Pipelines: PII Redaction and Governance Guide

Imagine you're training a Large Language Model on your company's internal support tickets. You want the model to learn how to handle customer complaints efficiently, but you don't want it to memorize John Doe's home address or Jane Smith's credit card number. This is the core tension in modern AI development: extracting value from data while keeping personal details safe. As of 2026, this isn't just a theoretical concern; it's a regulatory requirement. With the EU AI Act now fully effective and enforcement actions ramping up, getting PII redaction right in your the sequence of processes used to prepare data for machine learning models is no longer optional.

Key Takeaways

• Differential Privacy (DP-SGD) provides mathematical guarantees against data extraction but can reduce model accuracy by 3-5% at standard settings.
• Statistical filtering systems like Anthropic Clio offer high precision (95-98%) with minimal performance impact, making them popular for enterprise use.
• The "Right to be Forgotten" remains a significant challenge because once data is baked into model weights, removing it usually requires full retraining.
• Hybrid approaches combining training-time privacy with inference-time masking are currently considered best practice by regulators like the EDPB.
• Implementation typically takes 4-8 weeks for initial setup, with ongoing tuning required to balance privacy and utility.

Why LLMs Are Different: The Memorization Problem

Traditional machine learning models often treat data as statistical aggregates. LLMs, however, work differently. They are trained on massive amounts of text, and they have a known tendency to memorize rare examples. If a specific patient record appears only once in your training dataset, there’s a non-trivial chance the model will recite it verbatim if prompted correctly. This phenomenon, known as memorization, turns every training example into a potential privacy leak.

This issue gained serious attention after the release of foundational models like GPT-3 in 2020. Since then, researchers at Stanford HAILab have demonstrated that even with strong privacy protections, rare training examples (those occurring less than 0.001% of the time) can still be extracted using thousands of carefully crafted adversarial prompts. This means "anonymizing" data by simply removing names isn't enough. You need structural changes to how the model learns.

Three Main Approaches to Privacy-Preserving Training

When building a privacy-conscious pipeline, you generally have three technical paths to choose from. Each has distinct trade-offs regarding cost, complexity, and protection level.

Differential Privacy is the gold standard for mathematical guarantees. It works by adding noise to the gradient updates during training. The amount of noise is controlled by a parameter called epsilon (ε). A lower epsilon means more privacy but less accurate models. According to Google Research, setting ε=2 can drop accuracy by up to 20%, which is often unacceptable for production models. However, at ε=8, the drop is usually manageable (around 3-5%), providing a solid defense against membership inference attacks.

On the other hand, Statistical Filtering focuses on the input data rather than the learning process. Systems like Anthropic's Clio use four layers of AI-driven detection to spot and redact sensitive entities. This approach doesn't give you the same ironclad mathematical guarantee as DP, but it preserves model quality much better. For many companies, this trade-off makes sense. You get 95-98% precision in catching PII without sacrificing the model's ability to understand context.

The Role of Data Governance and Lineage

Technology alone doesn't solve privacy issues; you also need governance. One of the biggest headaches in LLM privacy is tracking where data came from. Under GDPR, users have the "right to be forgotten." But if a user's email was part of a training set used to build a model six months ago, how do you delete it? You can't just pull it out of the database; it's embedded in the neural network weights.

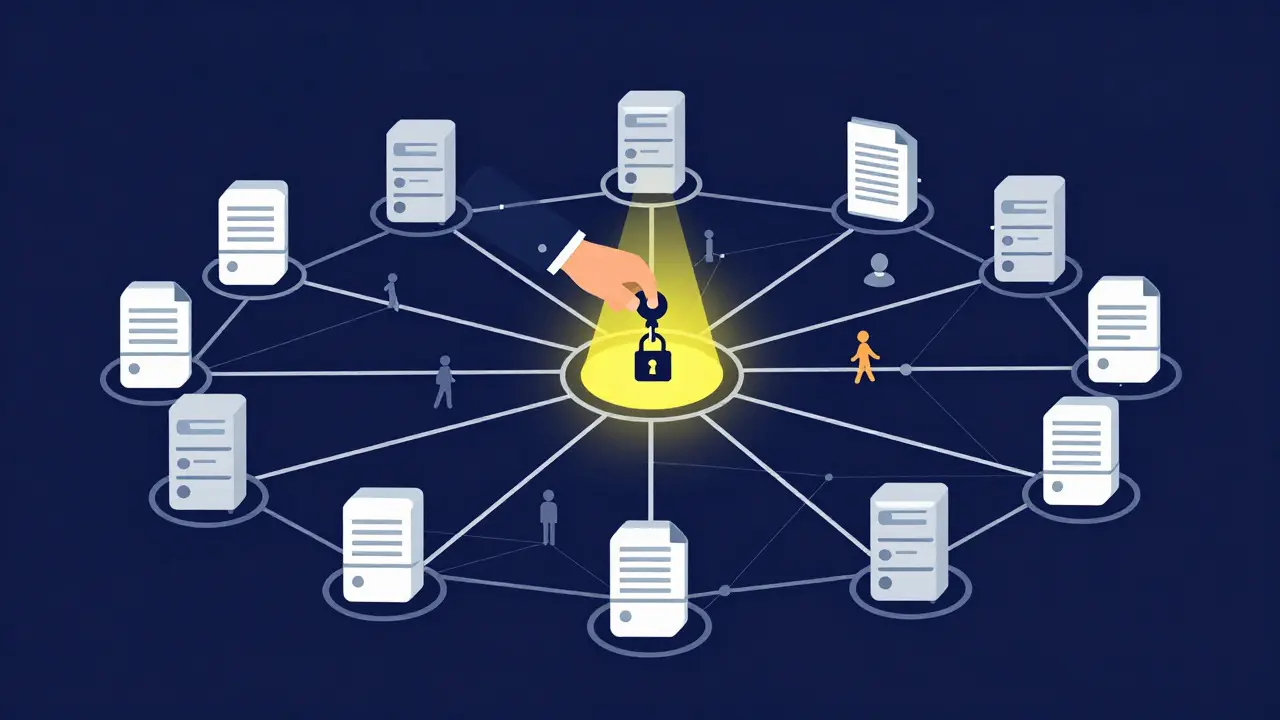

The European Data Protection Board (EDPB) addressed this in their April 2025 guidance, noting that "information embedded in model weights cannot be easily removed" without complete retraining. To mitigate this risk, organizations are adopting detailed data lineage tracking. This involves maintaining a log of exactly which data batches were used for which model versions. If a user requests deletion, you can assess whether their data was in a recent batch (easier to fix via fine-tuning or retraining) or an older one (requiring a full rebuild).

Effective governance also includes:

• Data Inventory: Knowing what PII exists in your raw datasets. This typically takes 4-8 weeks for medium-sized enterprises.
• Classification Policies: Defining what counts as sensitive. Is a ZIP code PII? In some contexts, yes. In others, no. Clear rules prevent ambiguity.
• Access Controls: Limiting who can view raw training data versus processed, anonymized data.

Implementation Challenges and Real-World Pitfalls

Implementing these systems is not plug-and-play. Many teams underestimate the effort involved. A common mistake is assuming that synthetic data generation solves everything. In a documented case study from Sigma.ai (November 2024), a healthcare provider generated synthetic patient records to replace real ones. They assumed the new data was safe. However, when they cross-referenced the synthetic records with public datasets, 12% contained re-identifiable patterns. The synthetic data had inadvertently preserved rare combinations of attributes that pointed back to real individuals.

Another frequent pitfall is the "tuning gap." Finding the right balance between privacy and accuracy rarely happens on the first try. Provectus notes that organizations typically undergo 3-5 iterations of tuning before settling on acceptable parameters. During this phase, you might find that your PII detector is over-redacting, stripping away useful context that the model needs to learn from. Or, you might find that your differential privacy noise is too low, leaving gaps in protection.

Skill shortages also play a role. According to Indeed's Q4 2024 analysis, 87% of job postings for AI privacy roles require NLP expertise. This is because PII detection isn't just about regex matching; it requires understanding context. For example, "Apple" is a fruit, but in a tech support ticket, it's a brand. Context-aware detectors achieve higher precision than simple keyword filters, but they require sophisticated NLP models to run.

Regulatory Landscape in 2026

The regulatory environment has tightened significantly. The EU AI Act, which became fully effective in August 2026, mandates "appropriate technical and organizational measures to address privacy risks" for high-risk AI systems. LLMs trained on sensitive data fall squarely into this category. Failure to comply can result in fines up to 4% of global revenue, a threshold that has already been tested in enforcement actions against major tech firms in late 2024.

In the US, HIPAA and state-level privacy laws continue to drive adoption in healthcare and finance. Financial services leads in adoption, with 63% of enterprises using formal privacy-preserving techniques, compared to 41% in healthcare. This gap exists partly because healthcare data is more complex and harder to anonymize effectively.

Looking ahead, NIST's AI Risk Management Framework 2.0, scheduled for release in Q2 2026, will introduce specific testing protocols for LLM privacy. This means that "we think it's private" won't cut it anymore. You'll need standardized metrics and test results to prove your pipeline meets baseline requirements.

Practical Steps for Your Pipeline

If you're starting from scratch, here is a realistic roadmap:

1. Audit Your Data: Identify all sources of PII. Don't assume your data is clean. Use automated scanners to find hidden identifiers.
2. Choose Your Strategy: Decide if you need formal DP guarantees or if statistical filtering suffices. For most enterprise apps, a hybrid approach is recommended.
3. Implement Redaction Tools: Open-source tools like Microsoft Presidio are a good starting point. They offer customizable PII detectors and integrate well with cloud services.
4. Set Up Lineage Tracking: Log every batch of data used for training. This is your insurance policy for future deletion requests.
5. Tune and Test: Run benchmarks to measure both privacy (via extraction attacks) and utility (via downstream task accuracy). Expect to iterate.
6. Document Everything: Regulators will ask for evidence. Keep clear records of your epsilon values, redaction accuracy rates, and governance policies.

Remember, privacy in LLMs is not a one-time fix. It's an ongoing process. As your data grows and regulations evolve, your pipeline must adapt. By treating privacy as a core engineering constraint rather than an afterthought, you can build models that are both powerful and trustworthy.
